Home Catalog Control Arm Bushing BMW 3 SERIES (E46) 1998 - 2005 BMW 3 SERIES (E46) 1998 - 2005 Control Arm Bushing

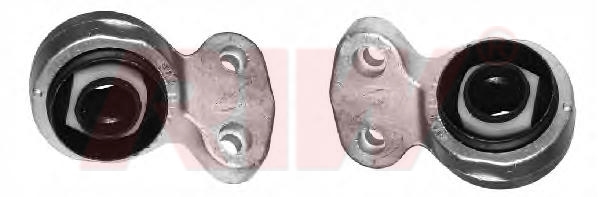

BW11801 /

Control Arm Bushing

Front Left And Right /

Assembly Parts

BW11010
Control Arm Bushing

BW6005
Control Arm

BW6005K
Control Arm

BW6006
Control Arm

BW6006K
Control Arm

‹ ›

Product Details

Product Code	BW11801
Chassis (Front / Rear)	Front
Position	Left And Right
Weight	1,453 kg / 3.204 lb
Material Type
Note	Kit = Bw11010 And Bw11011

Other Parts of the Linked Vehicles

BMW 3 SERIES E46 1998 - 2005

PRODUCT CODE	PRODUCT NAME	POSITION
BW1017	BALL JOINT	FRONT LOWER RIGHT
BW1018	BALL JOINT	FRONT LOWER LEFT
BW2015	TIE ROD END	FRONT RIGHT
BW2016	TIE ROD END	FRONT LEFT
BW2043	TIE ROD END	FRONT RIGHT
BW2044	TIE ROD END	FRONT LEFT
BW3013	AXIAL JOINT	FRONT LEFT AND RIGHT
BW3829	AXIAL JOINT	FRONT LEFT AND RIGHT
BW8010	REPAIR KIT	LEFT AND RIGHT
BW20153829	TIE ROD ASSEMBLY	FRONT RIGHT
BW20163829	TIE ROD ASSEMBLY	FRONT LEFT
BW20433013	TIE ROD ASSEMBLY	FRONT RIGHT
BW20443013	TIE ROD ASSEMBLY	FRONT LEFT
BW4017	LINK STABILIZER	REAR LEFT AND RIGHT
BW4019	LINK STABILIZER	FRONT RIGHT
BW4020	LINK STABILIZER	FRONT LEFT
BW6005	CONTROL ARM	FRONT LOWER RIGHT
BW60056006K	CONTROL ARM	FRONT LOWER LEFT AND RIGHT
BW6005K	CONTROL ARM	FRONT LOWER RIGHT
BW6006	CONTROL ARM	FRONT LOWER LEFT
BW6006K	CONTROL ARM	FRONT LOWER LEFT
BW6030	CONTROL ARM	FRONT LOWER RIGHT
BW6031	CONTROL ARM	FRONT LOWER LEFT
BW6035	CONTROL ARM	FRONT LOWER RIGHT
BW6036	CONTROL ARM	FRONT LOWER LEFT
BW9005	CONTROL ARM	REAR LOWER LEFT AND RIGHT
BW11008	CONTROL ARM BUSHING	INNER LEFT AND RIGHT
BW11008K	CONTROL ARM BUSHING	INNER LEFT AND RIGHT
BW11010	CONTROL ARM BUSHING	RIGHT
BW11011	CONTROL ARM BUSHING	LEFT
BW11013	CONTROL ARM BUSHING	LEFT AND RIGHT
BW11014	CONTROL ARM BUSHING	LEFT AND RIGHT
BW11014K	CONTROL ARM BUSHING	FRONT LEFT AND RIGHT
BW11048	CONTROL ARM BUSHING	REAR INNER LEFT AND RIGHT
BW11066	CONTROL ARM BUSHING	REAR LOWER LEFT AND RIGHT
BW11118	STABILIZER BAR BUSHING	REAR
BW12009	REAR CARRIER (TORSION) BUSHING	LEFT AND RIGHT
BW12010	REAR CARRIER (TORSION) BUSHING	LEFT AND RIGHT
BW12038	REAR CARRIER (TORSION) BUSHING	REAR LEFT AND RIGHT
BW12002	STABILISER MOUNTING	FRONT LEFT AND RIGHT
BW12002K	STABILISER MOUNTING	FRONT LEFT AND RIGHT
BW12143	STABILISER MOUNTING	FRONT
BW12143K	STABILISER MOUNTING	FRONT
BW12015	STRUT MOUNTING	LEFT AND RIGHT
BW12015K	STRUT MOUNTING	LEFT AND RIGHT
BW12135	STRUT MOUNTING	FRONT
BW12136	STRUT MOUNTING	FRONT
BW12136K	STRUT MOUNTING	FRONT
BW12012	ENGINE MOUNTING	LEFT AND RIGHT
BW12016	ENGINE MOUNTING	LEFT AND RIGHT
BW12064	ENGINE MOUNTING	FRONT
BW12066	ENGINE MOUNTING	FRONT LEFT
BW12067	ENGINE MOUNTING	FRONT RIGHT
BW12081	ENGINE MOUNTING	FRONT
BW12018	TRANSMISSION MOUNTING	LEFT AND RIGHT
BW12106	TRANSMISSION MOUNTING	FRONT
BW12107	TRANSMISSION MOUNTING	FRONT
BW12109	TRANSMISSION MOUNTING	FRONT
BW12013	PROPSHAFT (DRIVESHAFT) MOUNTING	LEFT AND RIGHT
BW12022	PROPSHAFT (DRIVESHAFT) MOUNTING	LEFT AND RIGHT
BW12120	PROPSHAFT (DRIVESHAFT) MOUNTING
BW11020	STEERING MOUNTING	LEFT AND RIGHT
VW13002	STEERING BELLOW	FRONT LEFT AND RIGHT
VW13002K	STEERING BELLOW	FRONT LEFT AND RIGHT
VW14001	AXLE BELLOW	FRONT OUTER LEFT AND RIGHT

Also Fits In

BW11801 / CONTROL ARM BUSHING

MAKE	MODEL	BODY TYPE & YEAR
BMW	3 SERIES	E46 1998 - 2005
BMW	Z4	ROADSTER E85 2003 - 2009
BMW	Z4	COUPE E86 2006 - 2009

OEM Codes

BW11801 / CONTROL ARM BUSHING

OEM CODES
31121095277 31121095278 31121096284 31121096983 31121096984 31124004359 31124004360 31126750057 31126750221 31126750222 31126751435 31126751436 31126753058 31126753059 31126753060 31126754899 31126754900 31126757622 31126757623 31126777850 31126783376 31129071952

Quick Search

* Name of all vehicles, brands, models, symbols and logos, OE numbers and other third party numbers in this website and catalog are used for reference purposes only.
